WorldView-4

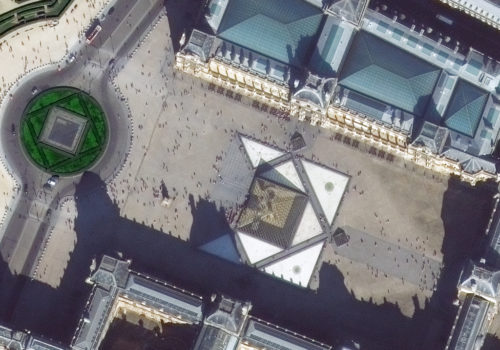

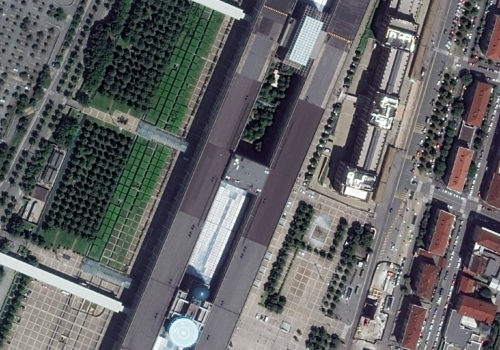

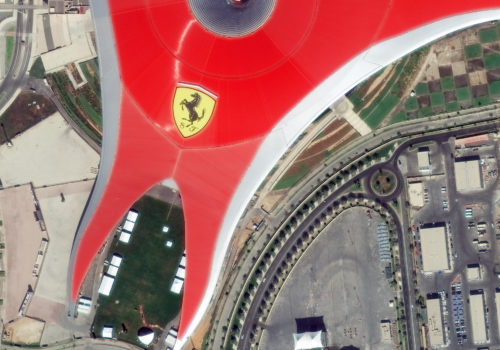

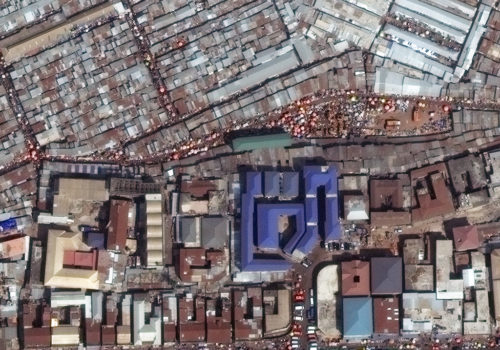

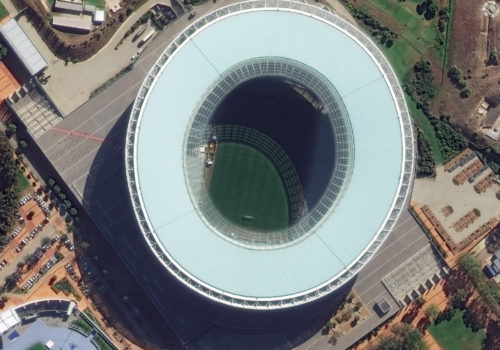

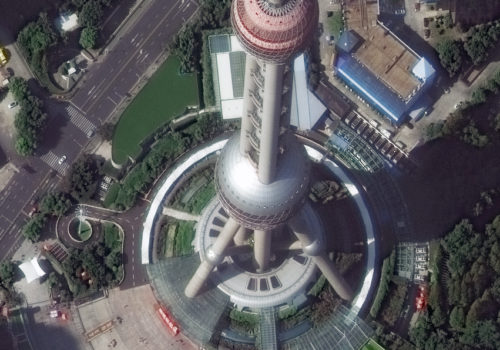

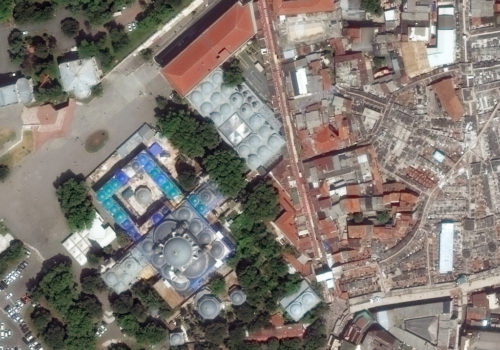

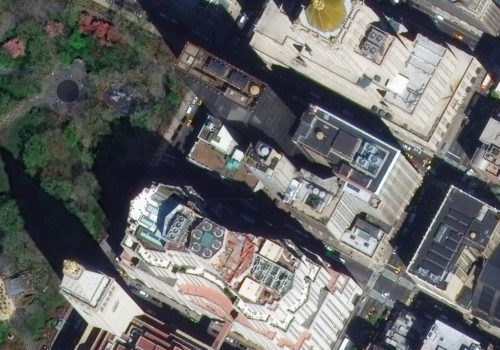

View Examples of WorldView-4 Satellite Imagery

Click on the expand button for a larger view of each image. You can also right-click and save any of the examples to your computer for a full resolution view.

Overview & HistoryWorldView-4 SpecificationsPricing

After two years in space alone, WorldView-4 joins its high-resolution satellite twin, WorldView-3, as the only 31-centimeter (cm) optical sensors in orbit. Also launched from Vandenberg Air Force Base in California, WorldView-4 reached orbit on November 11, 2016 offering 31-cm panchromatic and 1.24-meter (m) four band (i.e. blue, green, red and near-infrared) multispectral. As WorldView-4 started its life as GeoEye-2, it is not identical to WorldView-3 but has been significantly upgraded to match its twin as close as possible.

If your project demands the world’s highest resolution satellite imagery, then the tandem of WordlView-3 and WorldView-4 should be your next imagery choice. And by working in close unison to acquire newly tasked imagery, WorldView-3/4 are able to offer unmatched collection times of 31-cm data even in remote and competitive regions of the world.

Launch Details
  • Launch Date: November 11, 2016, 18:30 UTC (formerly known as GeoEye-2, but significantly overhauled before launch)
  • Vehicle: United Launch Alliance (ULA) Atlas V 401 booster
  • Site: SLC-3, Vandenberg Air Force Base, California, USA/li>
  • Expected Mission Life: 2026 to 2028
WorldView-4 Components
  • Dimensions: 5.3-m tall x 2.5-m across; 7.9-m across with deployed solar array; 5,214 kg (final wet mass launch weight)
  • Power System: 5 deployable fixed arrays; 1.17-m x 2.01-m Gallium-Arsenide solar cells supplying regulated 28 volts at 3.75 kW; 312 Ahr Li-Ion batteries
  • Control Systems:
    • 3-axis stabilized
    • Actuators – control movement gyros (CMGs)
    • Altitude determination – star trackers, precision solid state inertial reference unit (IRU) and GPS
  • Onboard Storage Capacity: 3,200 gigabytes (GB) solid state drive with EDAC
  • Ground Communication Systems:
    • Imagery & metadata downlink – 800 Mbps X-band
    • Maintenance – 120 kilobytes per second (kbps) real time, X-band
    • Commands – 64 kbps, S-band
  • Optical Sensor Assembly: 16.05-m focal length, 1.1-m aperture
Orbit Characteristics
  • Altitude: 617 km
  • Period: 97 minutes
  • Inclination: 97.96°
  • Direction: sun-synchronous circular, north to south (across the lit side of Earth)
  • Equatorial Crossing Time: 10:30 AM local time (approximate; across lit side of Earth)
  • Revisit Frequency: (at 40° lat)
    • 1 day (≥ 56° off-nadir)
Imaging System
  • Spectral Bands:
    • Panchromatic
    • 4-band multispectral (blue, green, red, and near-infrared [NIR])
  • Sensor Resolution:
    • At nadir – 31-cm panchromatic & 1.24-m multispectral
    • 20° off-nadir – 34-cm panchromatic & 1.38-m multispectral
    • 30° off-nadir – 40-cm panchromatic & 1.6-m multispectral
    • 56° off-nadir – 1-m panchromatic & 4-m multispectral
  • Panchromatic and Multispectral Bands Wavelength Range: (in nm)
    • Panchromatic – 450 to 800
    • Blue – 450 to 510
    • Green – 510 to 580
    • Red – 655 to 690
    • NIR – 780 to 920
  • Dynamic Range: 11-bits
Collection Capabilities
  • Footprint Width: 13.1 km (at nadir)
  • Single Pass Maximum Collection Geometry: (at 30° off-nadir)
    • Mono – 66.5 km x 112 km (5 strip wide)
    • Stereo – 26.6 km x 112 km (2 pairs wide)
  • Retargeting Ability: 10.6 sec (time to slew 200 km)
  • Daily Collection Capacity: 680,000 sq km
  • Georeferenced Horizontal Accuracy: < <5-m CE90 (global average, dependent on terrain)

Below is the least expensive WorldView-4 data offered. Prices increase for higher resolution, new collections, additional spectral bands and data processing. Note that academic and volume discounts are available.

  • Data Source: archive (greater than 90 days old)
  • Minimum Order Size: 25 sq km (per area & date)
  • Product Type: 30-cm georeferenced + natural color or 4-band (50-cm is offered at a discounted rate)
  • Price Per Sq Km: $22.50 (more detailed pricing can be found here)

For an exact quote, please contact our Sales Team at sales@apollomapping.com.
