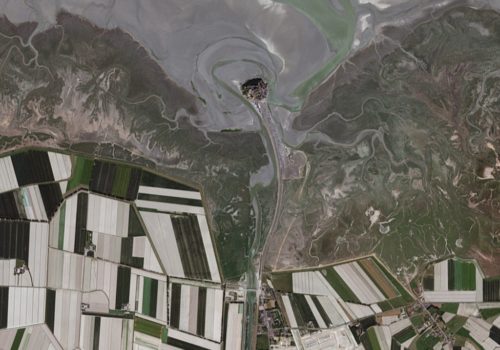

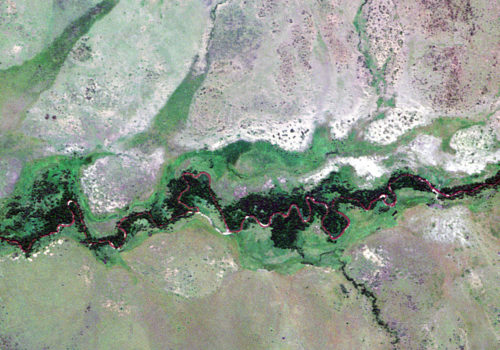

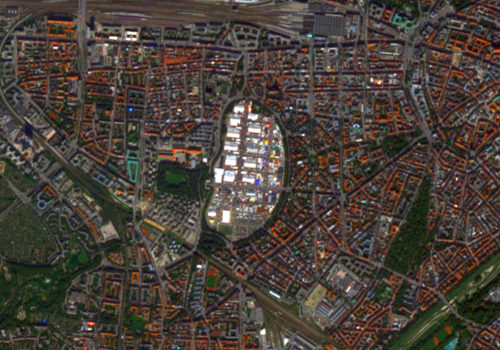

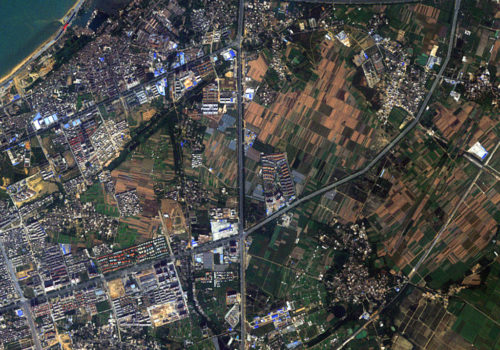

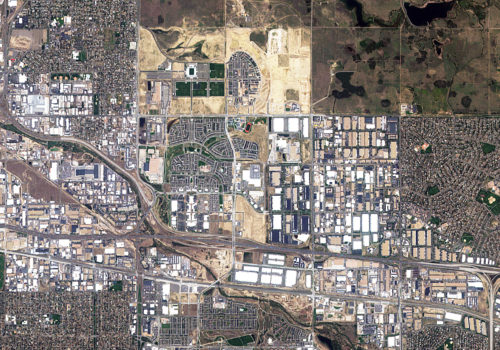

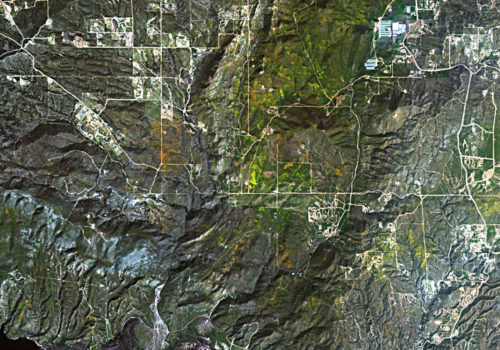

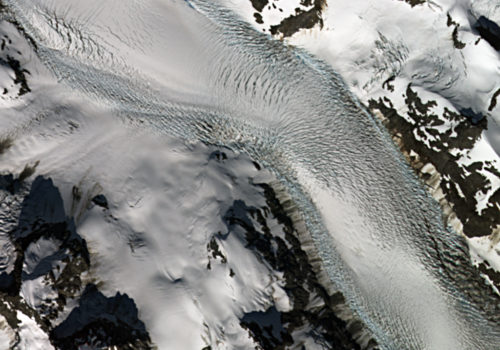

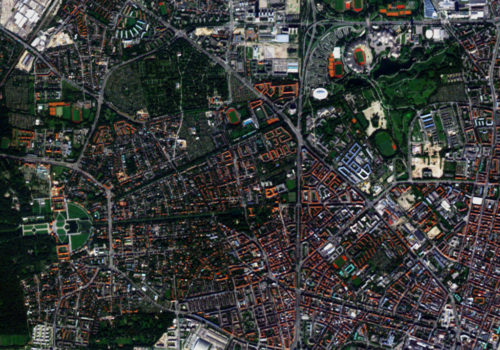

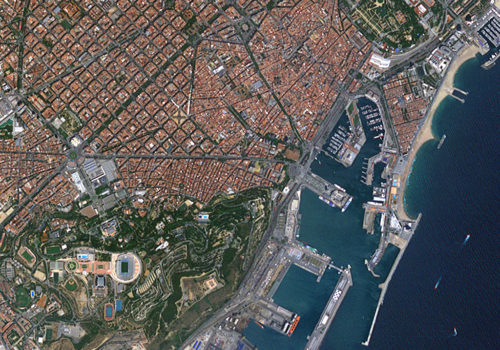

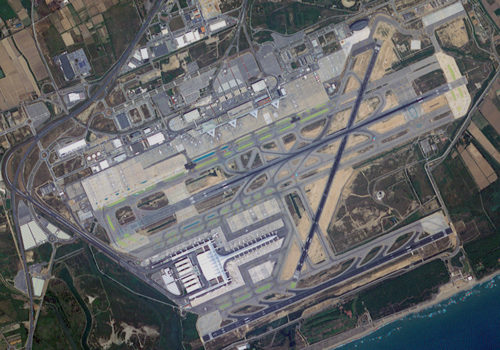

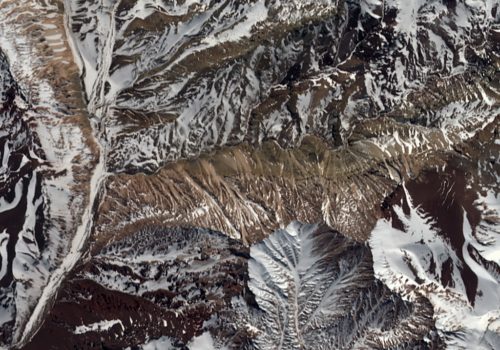

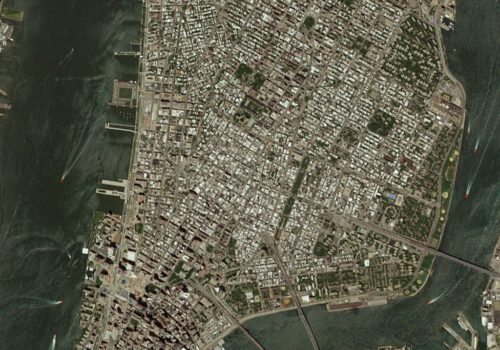

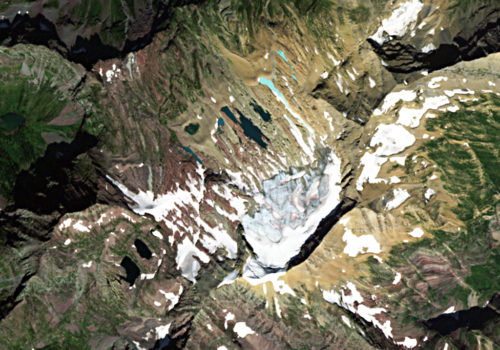

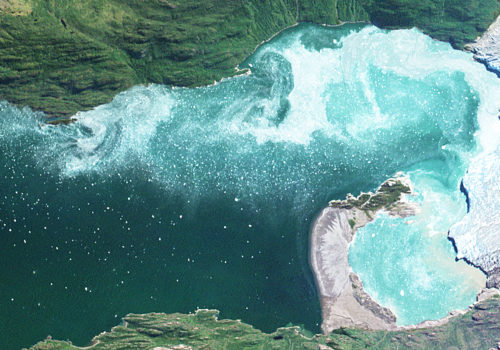

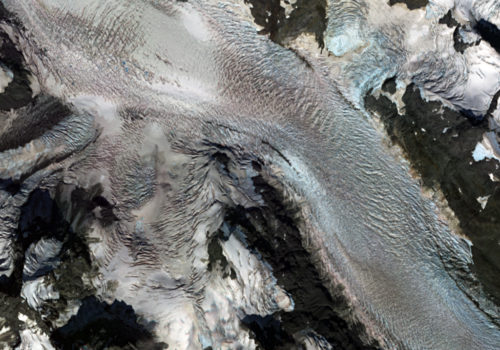

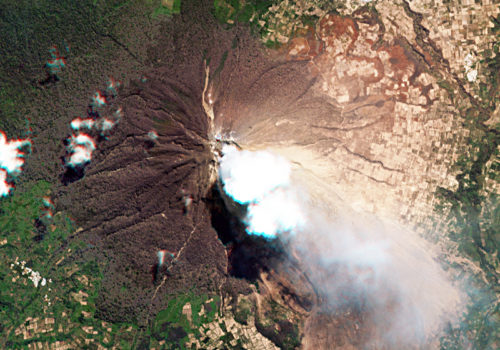

View Examples of RapidEye Satellite Imagery

Click on the expand button for a larger view of each image. You can also right-click and save any of the examples to your computer for a full resolution view.

Overview & HistoryRapidEye SpecificationsPricing

On August 29, 2008, a cluster of five identical medium-resolution satellites known as the RapidEye constellation was launched from Baikonur Cosmodrome, Kazakhstan, and reached an orbital height of 630 kilometers (km). The constellation features 6.5-meter resolution, 5-band multispectral (or blue, green, red, red edge and near-infrared/NIR) imagery.

With a wide footprint, five satellites and daily revisits, the RapidEye constellation has amassed more than 13 billion sq km of medium resolution imagery to date. Able to image 4 million sq km per day, or an area over twice as large as Mexico, the RapidEye constellation can support regional and even countrywide mapping projects.

Launch Details
  • Launch Date: August 29, 2008, 07:15 UTC
  • Vehicle: Dnepr Launch Vehicle
  • Site: Baikonur Cosmodrome, Kazakhstan
  • Satellites In Orbit: 5 identical, equally-calibrated satellites
  • Expected Mission Life: past 2017
RapidEye Components
  • Dimensions of One Satellite: < 1 cubic meter, 150 kg
  • Solar Array: single junction GaAs/Ge cells
  • Control Systems:
    • 4 reaction wheels in tetrahedral configuration
    • Dual-wound magnetorquer rods for momentum management
    • 3-axis magnetometers and sun sensors for coarse attitude knowledge
    • 1 star tracker providing high-accuracy attitude information
  • Onboard Storage Capacity: 48 gigabits
  • Ground Communication Systems:
    • Imagery downlink – 8.25 to 8.40 GHz, X-band
    • TT&C communications – S-band
    • Ground station location – Svalbard, Norway
  • Focal Plane: multispectral push broom imager
  • Optical Sensor Assembly:
    • Multi-Spectral Imager (MSI) built by Jena Optronik
    • MSI components – telescope, baffle, focal plane unit, front-end electronics, and instrument structure
    • Collector optics – three mirror anastigmatic (TMA) design
Orbit Characteristics
  • Altitude: 630 km
  • Period: 97.3 minutes
  • Inclination: ~ 97.9°
  • Direction: sun-synchronous circular, imaging north to south (across the lit side of Earth)
  • Equatorial Crossing Time: 11:00 AM local time (approximate; across lit side of Earth)
  • Observation Time: 14 minutes (time on lit side of Earth)
  • Revisit Frequency: 1 day (<20° off-nadir) at any latitude
Imaging System
  • Spectral Bands: 5-band multispectral (blue, green, red, red edge and NIR)
  • Sensor Resolution: 6.5 m (at nadir)
  • Spectral Band Wavelength Range: (in nm)
    • Blue – 440 to 510
    • Green – 520 to 590
    • Red – 630 to 685
    • Red edge – 690 to 730
    • NIR – 760 to 850
  • Dynamic Range: 12-bits
Collection Capabilities
  • Footprint Width: 77 km (at nadir)
  • Maximum Collection Geometry: up to 1 million sq km per day, per satellite
  • Daily Collection Capacity: 5,000,000 sq km (for combined 5 satellite constellation)
  • 3A Ortho Horizontal Accuracy: 50m CE90 (32m RSME) or better, depending on accuracy of GCPs and DEMs

Below is the least expensive RapidEye data offered. Prices increase for new collections and data processing. Note that academic and volume discounts are available.

For an exact quote, please contact our Sales Team at sales@apollomapping.com.
