WorldView-1 Satellite

WorldView-1 satellite collects impressive amounts of 50-cm resolution, panchromatic imagery on a daily basis.

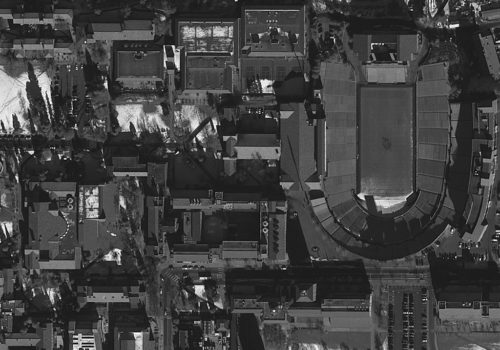

Sample imagery

SLQag8Key4zdDm5EdPTbKB51FxKa5LOatwdmapmB8RGsERGGGZnFKOnM4bmWm1z1a

WorldView-1 50-cm Panchromatic–Le Parc des Princes, Paris, Frances; June 7, 2018 View Full Size Image

The WorldView-1 Advantage

Global Coverage

The archive of WorldView-1 is filled with 10,000 sq km (or larger) rectangles of continuous high resolution imagery. It would be unusual if the WorldView-1 archive did not contain at least one image over your location.

Stereo Imagery

WorldView-1 is an extremely agile satellite that can collect stereo imagery. Stereo imagery is the raw data needed to create accurate elevation models.

High Positional Accuracy

With impressive positional accuracy (often even without orthorectification) and an ever-expanding archive, WorldView-1 is appropriate for regional and local mapping projects, site monitoring and land use determination.

Overview & History

WorkdView-1 is the industry leader when it comes to high resolution coverage. This satellite collects more than 1,000,000 square kilometers (sq km) of imagery every day! After a six year break in the launch of high resolution satellites, WorldView-1 was launched by Maxar Technologies on September 18, 2007 from Vandenberg Air Force Base, CA.

As the first of the second-generation high-resolution satellites, WorldView-1 features 50-centimeter (cm) panchromatic imagery. Orbiting our planet at 496 km, it is an extremely agile satellite with an enormous archive of high resolution imagery, including stereo data for topographic model creation.

WorldView-1 Specifications

Launch Details
  • Launch Date: September 18, 2007, 18:35 UTC
  • Vehicle: Delta 7920
  • Site: Vandenberg Air Force Base, California, USA
  • Expected Mission Life: 2017 to 2019
WorldView-1 Components
  • Dimensions: 3.6-m tall x 2.5-m across; 7.1-m across with deployed solar array; 2290 kg
  • Solar Array: 3.2 kW, 100 Ahr battery
  • Control Systems:
    • 3-axis stabilized
    • Actuators: control movement gyros (CMGs)
    • Altitude determination: star trackers, solid state inertial reference unit (IRU) and GPS
  • Onboard Storage Capacity: 2199 gigabytes, solid state with EDAC
  • Ground Communication Systems:
    • Imagery & metadata downlink–800 Mbits per second, X-band
    • Maintenance–4, 16 or 32 kilobytes per second (kbps) real time, 524 kbps stored, X-band
    • Commands–2 or 64 kbps, S-band
  • Focal Plane:
    • 50 staggered panchromatic detector sub-arrays (DSAs)–732 detectors per DSA; 36,400 detectors are light sensitive
Orbit Characteristics
  • Altitude: 496 km
  • Period: 95 minutes
  • Inclination: 98.0°
  • Direction: sun-synchronous circular, north to south (across the lit side of Earth)
  • Equatorial Crossing Time: 1:30 PM by June 2016; 2-year transition from 10:30 AM local time started June 2014 (approximate; across lit side of Earth)
  • Revisit Frequency: (at 40°N)
    • 1.7 days (< 45° off-nadir)
    • 5.4 days (< 20° off-nadir)
Imaging System
  • Spectral Bands:
    • Panchromatic only
  • Sensor Resolution:
    • At nadir–50 cm
    • 20° off-nadir–55 cm
    • 30° off-nadir–64 cm
    • 45° off-nadir–92 cm
  • Spectral Band Wavelength Range: (minimum, center, maximum edge; in nm)
    • Panchromatic–397, 651, 905
  • Dynamic Range: 11-bits
Collection Capabilities
  • Footprint Width: 17.7 km (at nadir)
  • Collection Geometry: (at 30° off-nadir)
    • Mono, large area–111 km x 112 km (6 strips wide)
    • Mono, long strip–360 km x 17.7 km (1 strip only)
    • Stereo, large area–51 km x 112 km (3 pairs wide)
  • Retargeting Ability: 10 sec (time to slew 200 km)
  • Daily Collection Capacity: 1,3000,000 sq km
  • Georeferenced Horizontal Accuracy: < 4.0-m CE90 (global average, dependent on terrain)

Pricing

Data Source

archive

Minimum Order Size

25 sq km (per area & date)

Product Type

georeferenced + panchromatic

For an exact quote, please contact our Sales Team by email at sales@apollomapping.com
or by using our Request a Quote form.

Interested in a spectral response graph for WorldView-1?
