FORMOSAT-5 Satellite Imagery Samples

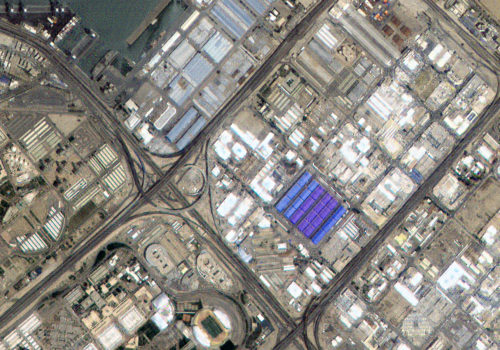

FORMOSAT-5 2-m Natural Color – Kuwait City, Kuwait; April 20, 2019

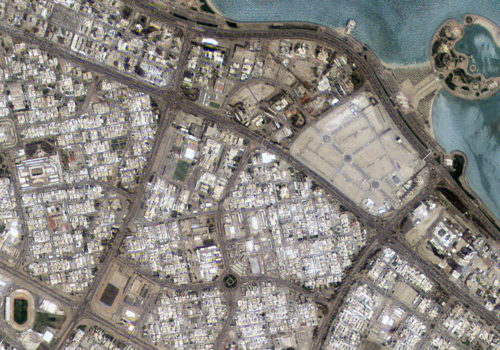

FORMOSAT-5 2-m Natural Color – Kuwait City, Kuwait; April 20, 2019

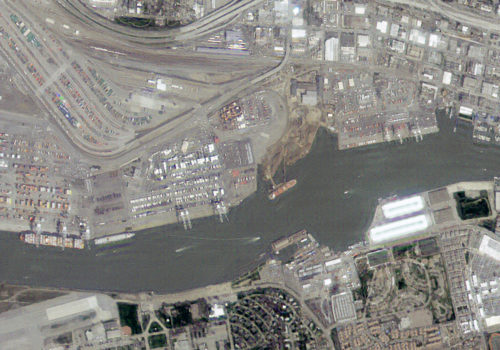

FORMOSAT-5 2-m Natural Color – Oakland, CA, USA; March 31, 2019

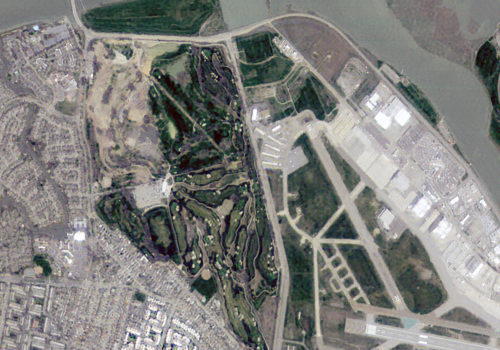

FORMOSAT-5 2-m Natural Color – Oakland, CA, USA; March 31, 2019
Click on the expand button for a larger view of each image. You can also right-click and save any of the examples to your computer for a full resolution view.
The FORMOSAT-5 Advantage
Download Orbital Track
You can download the fixed orbital track of FORMOSAT-5
here.
Pay Less For Multispectral
Most satellites feature multispectral data that is a quarter the resolution of the panchromatic band, but FORMOSAT-5’s multispectral band is half the resolution. This means you are getting higher-resolution 4-m multispectral data at medium-resolution prices!
Overview & HistoryFORMOSAT-5 SpecificationsPricing
Launched in 2017 nearly a year after the decommissioning of its satellite sibling (i.e. FORMOSAT-2), FORMOSAT-5 is the continuation of the National Space Organization’s (NSPO) optical FORMOSAT series. This medium-resolution satellite features 2-meter (m) panchromatic and 4-m multispectral (i.e. blue, green, red and near-infrared/NIR) bands with 24-kilometer (km) wide images. FORMOSAT-5 distinguishes itself from the competition with its fixed orbital path along which images of the same location can be collected every two days.
Launch Details
- Launch Date: August 24, 2017, 18:50 UTC
- Vehicle: Falcon 9
- Site: Space Launch Complex 4 (SLC-4E), Vandenberg Air Force Base, California, USA
- Expected Mission Life: at least 2022
FORMOSAT-5 Components
- Dimensions: 2.4-m tall x 1.6-m across (2.0-m across with deployed solar array); 450 kg
- Solar Array: 600W, 24 Ahr battery
- Control Systems:
- 3-axis stabilized
- Actuators – reaction wheels
- Altitude determination – star trackers, fiber optic gyro and GPS
- Onboard Storage Capacity: 128 gigabytes, solid state with EDAC
- Ground Communication Systems:
- Imagery downlink – 150 megabytes per second, X-band
- Commands – 32 kbps, S-band
- Telemetry – 2 Mbps, S-band
- Focal Plane:
- Panchromatic linear CMOS sensor – 12,000 pixels
- 4 multispectral linear CMOS sensor – 6,000 pixels (blue, green, red and NIR)
- Optical Sensor Assembly: 3.6-m focal length, 45-cm aperture
Orbit Characteristics
- Altitude: 720 km
- Period: 99.3 minutes
- Inclination: 98.3°
- Direction: sun-synchronous circular, north to south (across the lit side of Earth)
- Equatorial Crossing Time: 10:40 AM local time (approximate; across lit side of Earth)
- Revisit Frequency: 2-days along a fixed orbital track
Imaging System
- Spectral Bands:
- Panchromatic
- 4-band multispectral (blue, green, red and NIR)
- Sensor Resolution:
- At nadir – 2-m panchromatic & 4-m multispectral
- Spectral Band Wavelength Range: (in nm)
- Panchromatic – 450 to 700
- Blue – 455 to 515
- Green – 525 to 595
- Red – 630 to 690
- NIR – 762 to 897
- Dynamic Range: 12-bits
Collection Capabilities
- Footprint Width: 24 km (at nadir)
- Retargeting Ability: 50 sec (time to slew 200 km at 720-km altitude)
- Daily Collection Capacity: 172,240 sq km (based on April 2019 data)
- Georeferenced Horizontal Accuracy: < 390-m CE90 (global average, dependent on terrain)
Below is the least expensive FORMOSAT-5 data offered. Prices increase for additional spectral bands and data processing. Note that academic and volume discounts are available.
For an exact quote, please contact our Sales Team at sales@apollomapping.com.
